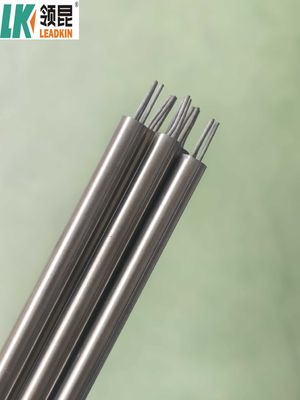

Ni and Cu Inorganic Mineral Insulating T Type Thermocouple Cable

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

Sheath Dia(mm):  φ3.0, φ4.0, φ6.0, φ8.0

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

• Inorganic mineral insulated cable material is a solid combination made of pure nickel wire or copper wire, inorganic mineral insulation and metal sleeve three combination processing, suitable for high temperature environment (200℃~1000℃) use, can be used in corrosive environment, flame, metal solution and liquid immersion and other harsh conditions as an extension cable.

• Armored thermocouple cable material is a solid composite made from a combination of thermocouple wires,inorganic mineral insulating materials,and metal sheaths.It is a key material for manufacturing armored thermocouples and is widely used in various industrial sectors and scientific and technological fields.

• Characteristics:Small outer diameter,fast thermal response time,can be bent,long service life,good air tightness,wide temperature measurement range,and high pressure resistance.It can be used under conditions of narrow and curved installation pipelines.

  Applicable temperature range:-200°C to 1300°C(optional).Suitable for various occasions with accuracy grades of 0.4%t and 0.75%t.

• Thermocouple armor materials:K,N,E,J,T,S,R,B types,can be used in pairs or in duplicate.The outer sheath diameter ranges from Φ0.5 to Φ12.7,with a variety of outer sheath materials available."

  Please note that"%t"is likely a placeholder for a unit or a specific term that was not clear from the context.If it refers to a unit of measurement or a specific term,it may need to be replaced with the appropriate term in English.

What is a Thermocouple?

• A thermocouple is a type of transducer that converts thermal energy into electrical energy. It is made by joining wires of dissimilar metals to create a junction. When the temperature at this junction changes, it generates a voltage that can be measured and used to determine the temperature.
• The thermocouple operates based on the Seebeck Effect, which states that when dissimilar metals are joined at a junction, they generate a small, measurable voltage in response to changes in the temperature at that junction. The magnitude of the voltage produced depends on both the temperature change and the properties of the metals used.
• A thermocouple is composed of two insulated wires made from different metals, which are connected to a measuring device. It functions as a safety and monitoring tool for various processes and equipment, providing crucial temperature measurements and ensuring proper operation.
• The operation of a thermocouple is illustrated in the image below. As the temperature increases at the junction of the wires on the left, the resulting temperature change is displayed on the gauge on the right.
• Thermocouple assemblies are engineered for use in harsh, severe, and demanding environments. The selection of a thermocouple depends on factors such as the temperature range, ambient atmosphere, and the type of media being measured. Additionally, the size and shape of the thermocouple are tailored to the specific application, considering factors like required accuracy and response speed.

How Does a Thermocouple Work?

In a thermocouple, the two wires are joined to form a junction where one wire, connected to the body of the thermocouple, acts as the hot or measuring junction that measures the temperature. The other wire connects to a reference junction, also known as the cold junction, which is kept at a known temperature. The thermocouple determines the unknown temperature by comparing the voltage generated at the hot junction with the reference temperature at the cold junction.

Using a Thermowell

A thermowell is designed to protect a thermocouple from process media by encasing it in a closed tube or solid bar-stock that is mounted within the media. Thermowells are commonly used with fluids and pressure lines in refineries and chemical plants to extend the life of thermocouples. They facilitate the replacement of a thermocouple without requiring a process shutdown.

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
