Industrial Grade Mineral Insulated Thermocouple Cable For Temperature Measurement And Control

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

Sheath Dia(mm):  φ3.0, φ4.0, φ6.0, φ8.0

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Product Description:

• The Mineral-Insulated Thermocouple Wiring is available in different sizes, ranging from 0.5mm to 4.0mm, and can be used to measure temperatures up to 1200°C. The conductor type can be either solid or stranded, depending on the application requirements. The insulation used in the Mineral-Insulated Thermocouple Wiring is mineral insulated, which provides excellent electrical insulation and mechanical protection, ensuring the cable's durability and reliability.
• The sheath of the Mineral-Insulated Thermocouple Wiring is made from stainless steel, making it suitable for use in harsh environments. The stainless steel sheath provides excellent resistance to corrosion and high temperatures, making it ideal for use in applications where the cable is exposed to chemicals, moisture, and extreme temperatures.
• The Mineral-Insulated Thermocouple Wiring is available with different connector types, including screw, plug, and socket. The connector type can be selected based on the application requirements. For instance, the screw connector type is suitable for applications where the cable needs to be connected and disconnected frequently. The plug and socket connector types are ideal for applications where the cable needs to be connected permanently.
• The Mineral-Insulated Thermocouple Wiring is highly reliable and accurate, making it ideal for use in various industrial applications such as chemical processing, food processing, and pharmaceuticals. It is designed to perform under extreme conditions, making it suitable for use in harsh environments. The Mineral-Insulated Temperature Coil is also widely used in research and development applications where high accuracy and reliability are essential.

What is a thermocouple?

Thermocouples are widely used in industry to measure temperatures beyond 200°C. In the simplest case, an electronic temperature measuring device consists of two components: a thermocouple as a measuring transducer and a measuring device.

How does a thermocouple work?

A thermocouple consists of two wires made of different metals. These are connected to one another at one end. In industrial applications, these are usually welded together because this gives them a high level of vibration resistance.

A measuring device is connected to the open end of the two metals. This processes the signals from the thermocouple. Due to the thermoelectric effect, a voltage can be measured between the two unconnected ends. If the temperature at the measuring point rises or falls, the electron density of the two metals changes. This changed electron density can be measured as a changed voltage at the wire ends.

Applications :
RTD and Thermocouple Sensors Constructed Using MI Cable are Used Extensively in Various Applications such as:.

• Solid waste incinerators.
• Sintering powdered metals.
• Firing ceramic materials.
• Gas or oil fired furnaces.
• Fuel fired heat exchangers.
• Box furnaces.
• Nuclear or hydrocarbon based energy plant.

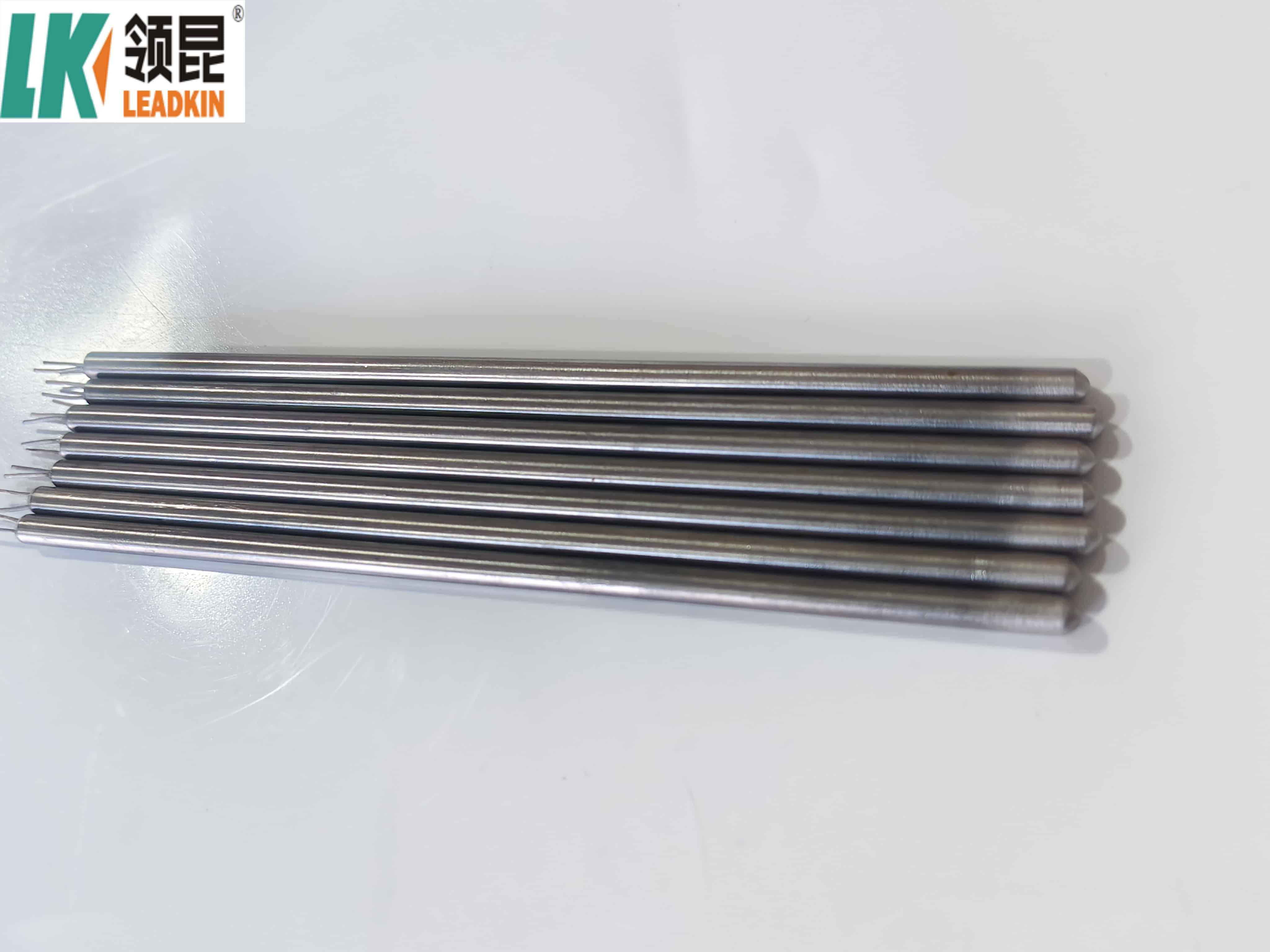

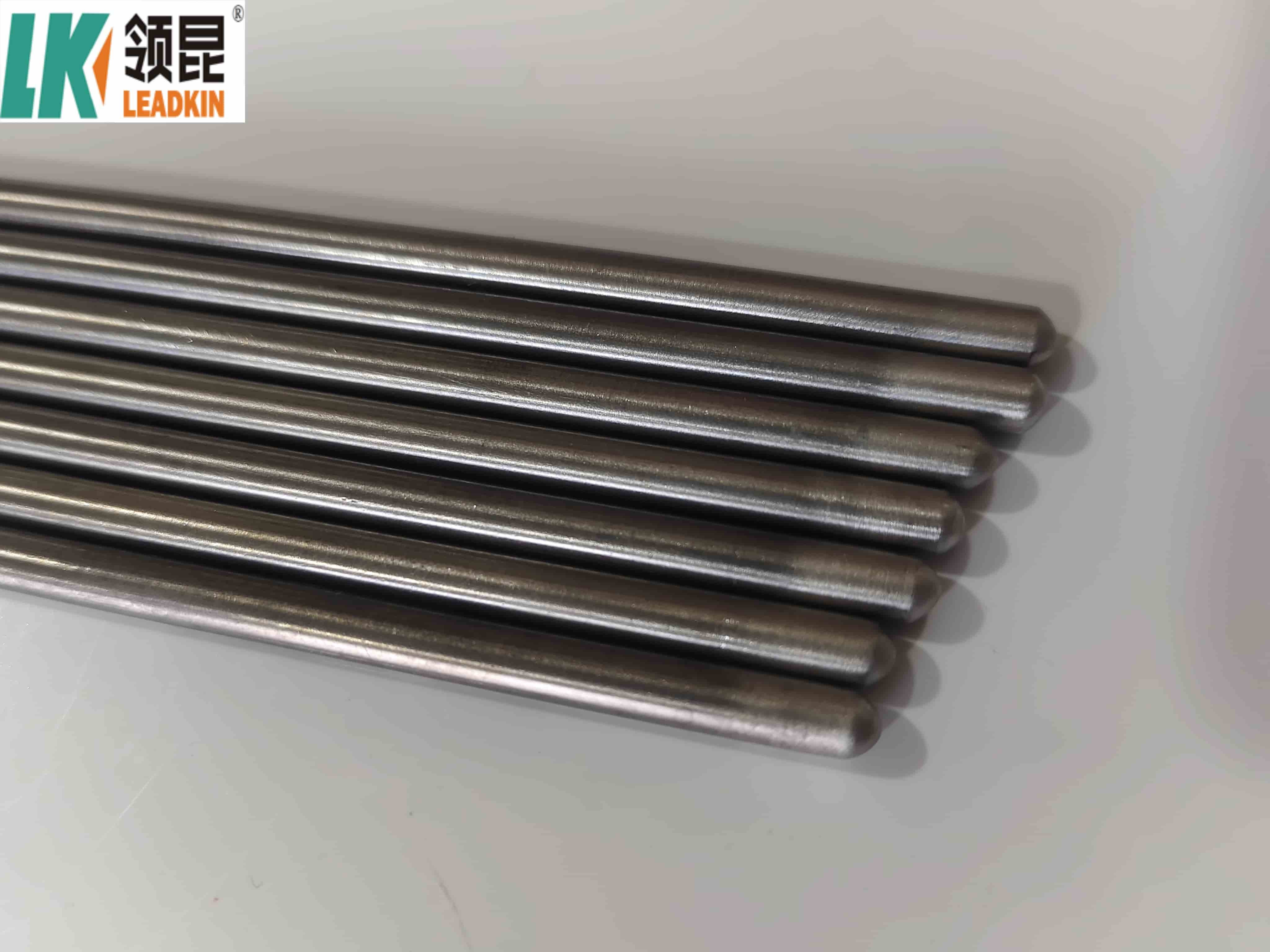

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Support and Services:

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With a variety of options for thermocouple types, sheath materials, and insulation materials, we offer a custom solution to fit your specific needs. Our cables are also highly durable and resistant to vibration and shock.

We provide technical support and services for our Mineral Insulated Thermocouple Cables, including:

• Selection guidance for thermocouple type, sheath material, and insulation material
• Assistance with cable installation and maintenance
• Troubleshooting and problem-solving
• Repair and warranty services

Our team of experts is dedicated to ensuring the highest level of customer satisfaction and providing reliable solutions for your temperature measurement needs.
