| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
Thermocouples are widely used temperature sensors due to their simplicity, robustness, and ability to operate over a broad range of temperatures. Here are some of the main applications and places where thermocouples are commonly used:
Industrial Processes: Thermocouples are extensively used in manufacturing processes, such as in the chemical, petrochemical, and food processing industries, to monitor and control temperatures in reactors, ovens, and furnaces.
Power Generation: In power plants, thermocouples are used to monitor temperatures in boilers, turbines, and exhaust systems to ensure efficiency and safety.
HVAC Systems: They are used in heating, ventilation, and air conditioning systems to monitor and regulate temperatures for optimal performance.
Automotive Industry: Thermocouples are used in vehicles to monitor engine temperatures, exhaust gas temperatures, and in various electronic control systems.
Aerospace: In aerospace applications, thermocouples are employed to monitor temperatures in engines and other critical components for safety and performance.
Laboratories and Research: Thermocouples are used in laboratories for experiments requiring precise temperature measurements, such as in material testing and thermal analysis.
Home Appliances: Common household appliances, like ovens and water heaters, often use thermocouples for temperature regulation.
Medical Equipment: They are utilized in medical devices, such as incubators and sterilizers, to ensure that appropriate temperatures are maintained.
Cryogenics: Thermocouples are employed in cryogenic applications to measure extremely low temperatures.
Oil and Gas Industry: Used in drilling and production operations to monitor temperatures in various equipment and downhole environments.
Thermocouples are favored in these applications due to their fast response time, wide temperature range, and relative cost-effectiveness compared to other temperature sensors.
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

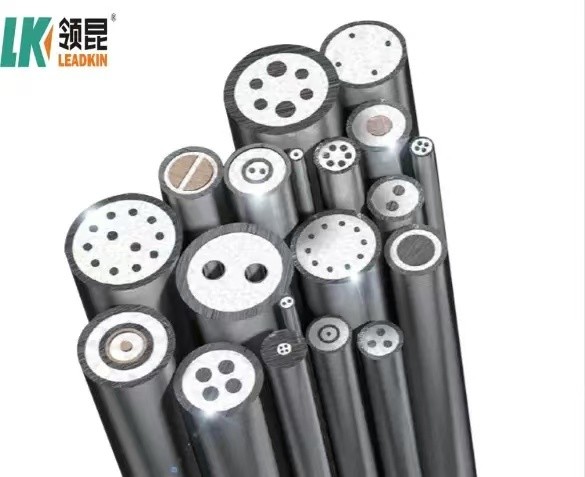

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With a variety of options for thermocouple types, sheath materials, and insulation materials, we offer a custom solution to fit your specific needs. Our cables are also highly durable and resistant to vibration and shock.
We provide technical support and services for our Mineral Insulated Thermocouple Cables, including:
Our team of experts is dedicated to ensuring the highest level of customer satisfaction and providing reliable solutions for your temperature measurement needs.
