MgO Insulated Metal Sheathed Cable for High Temperature Measurement

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

Sheath Dia(mm):  φ3.0, φ4.0, φ6.0, φ8.0

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Product Description:

Applications of Mineral Insulated Cable

MI cables are widely used in various industries, including:

• Power Generation: For instrumentation and control in power plants.
• Oil and Gas: In exploration and processing facilities where extreme conditions are encountered.
• Metals and Mining: For monitoring and control systems in smelting and mining operations.
• Building Services: In fire alarm systems and emergency lighting.

Introduction to Thermocouples

Thermocouples are temperature sensors that consist of two dissimilar metals joined at one end, creating a junction. When heated, a voltage is generated at the junction, which is proportional to the temperature difference between the hot junction and the reference junction (often kept at a known temperature). This phenomenon is known as the Seebeck effect.

Applications :
RTD and Thermocouple Sensors Constructed Using MI Cable are Used Extensively in Various Applications such as:.

• Solid waste incinerators.
• Sintering powdered metals.
• Firing ceramic materials.
• Gas or oil fired furnaces.
• Fuel fired heat exchangers.
• Box furnaces.
• Nuclear or hydrocarbon based energy plant.

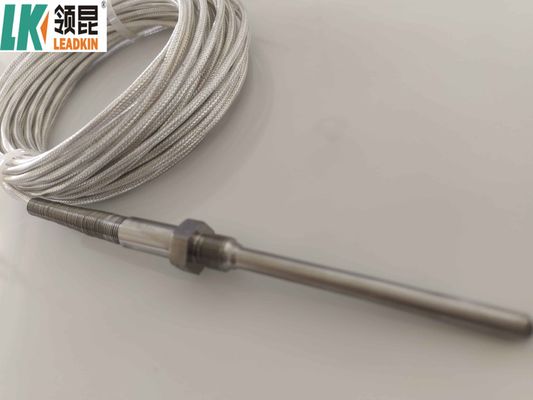

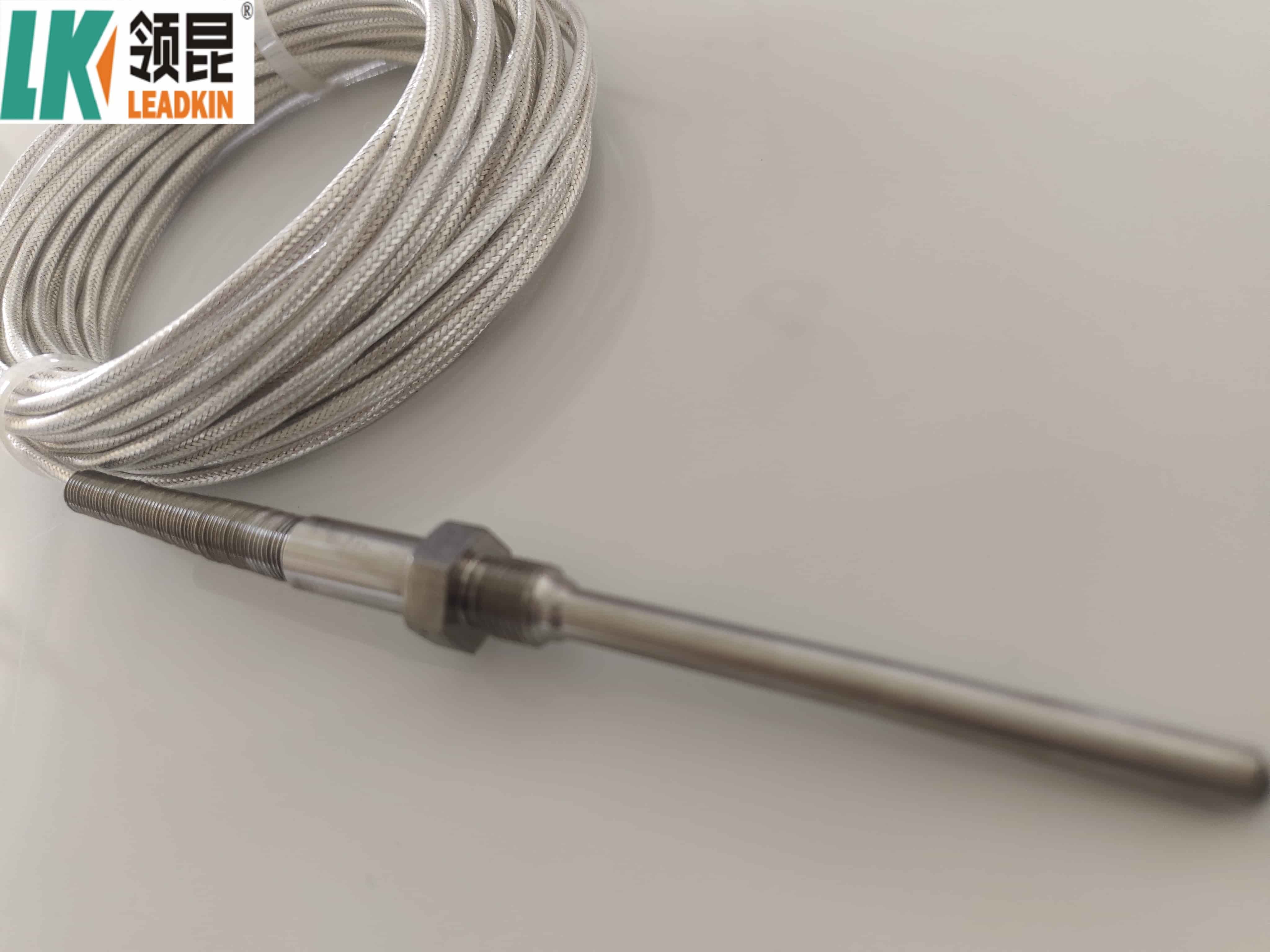

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Support and Services:

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With a variety of options for thermocouple types, sheath materials, and insulation materials, we offer a custom solution to fit your specific needs. Our cables are also highly durable and resistant to vibration and shock.

We provide technical support and services for our Mineral Insulated Thermocouple Cables, including:

• Selection guidance for thermocouple type, sheath material, and insulation material
• Assistance with cable installation and maintenance
• Troubleshooting and problem-solving
• Repair and warranty services

Our team of experts is dedicated to ensuring the highest level of customer satisfaction and providing reliable solutions for your temperature measurement needs.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
