Mineral Insulated Thermocouple Cable For Accurate Temperature Measurement

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Product Description:

• Applications: Thermocouples are used in various applications, including:
• Industrial processes (furnaces, kilns, and reactors)
• HVAC systems
• Food processing
• Power generation
• Advantages:
• Wide temperature range
• Fast response time
• Simple construction and robust design
• Disadvantages:
• Non-linear output
• Requires calibration against known standards
• Susceptibility to electromagnetic interference
• Mineral Insulated (MI) Cables
• Definition: Mineral insulated cables are specialized electrical cables that consist of conductors (often thermocouple wires) surrounded by a mineral insulation material (typically magnesium oxide) and housed in a metal sheath (usually stainless steel or other alloys).
• Construction:
• Conductors: Usually made of metals like copper or nickel, depending on the application.
• Insulation: Magnesium oxide (MgO) provides excellent thermal and electrical insulation.
• Sheath: The metal sheath protects the wires and insulation from mechanical damage, chemicals, and moisture.

Applications :
RTD and Thermocouple Sensors Constructed Using MI Cable are Used Extensively in Various Applications such as:.

• Solid waste incinerators.
• Sintering powdered metals.
• Firing ceramic materials.
• Gas or oil fired furnaces.
• Fuel fired heat exchangers.
• Box furnaces.
• Nuclear or hydrocarbon based energy plant.

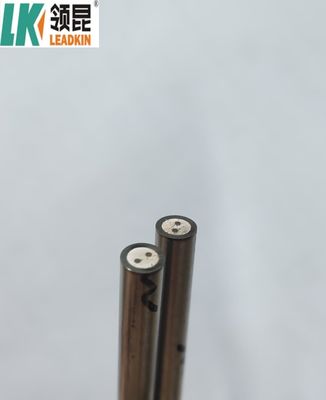

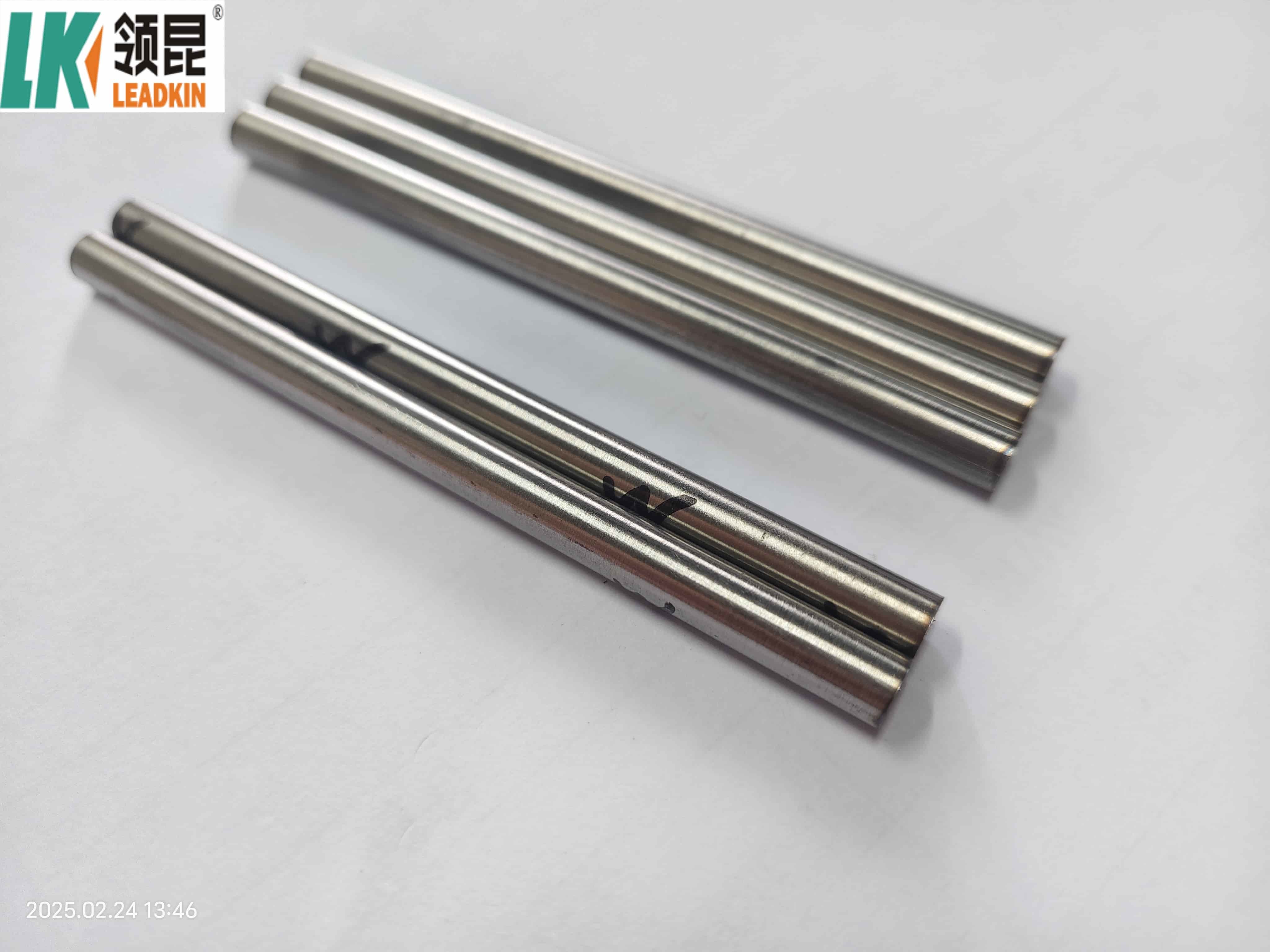

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
