MgO Mineral Insulated Metal Sheathed Cable For Thermocouple

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Product Description:

Characteristics:

Temperature Range: MI cables can operate in extreme temperature environments, often up to 1200°C.

Durability: The metal sheath provides durability and resistance to harsh environmental conditions.

Flexibility: Despite their rugged construction, MI cables can be made flexible for installation in various applications.

Applications:

Used with thermocouples in high-temperature and hazardous environments (e.g., power plants, petrochemical industries).

Suitable for temperature measurement in nuclear applications, furnace monitoring, and cryogenic environments.

Commonly found in applications where electrical and thermal insulation is critical.

Advantages:

High thermal conductivity and rapid response times.

Excellent protection against mechanical damage and chemical exposure.

Long lifespan, even under extreme conditions.

Disadvantages:

Typically more expensive than standard thermocouple leads.

Installation can be more complicated due to stiffness and weight.

Conclusion:

Both thermocouples and mineral insulated cables play critical roles in temperature measurement and control in various industries. Understanding their characteristics, advantages, and limitations helps in selecting the right components for specific applications. Whether you need reliable temperature readings in a furnace or require durable cables for harsh environments, these technologies are essential in modern industrial processes.

Applications :
RTD and Thermocouple Sensors Constructed Using MI Cable are Used Extensively in Various Applications such as:.

• Solid waste incinerators.
• Sintering powdered metals.
• Firing ceramic materials.
• Gas or oil fired furnaces.
• Fuel fired heat exchangers.
• Box furnaces.
• Nuclear or hydrocarbon based energy plant.

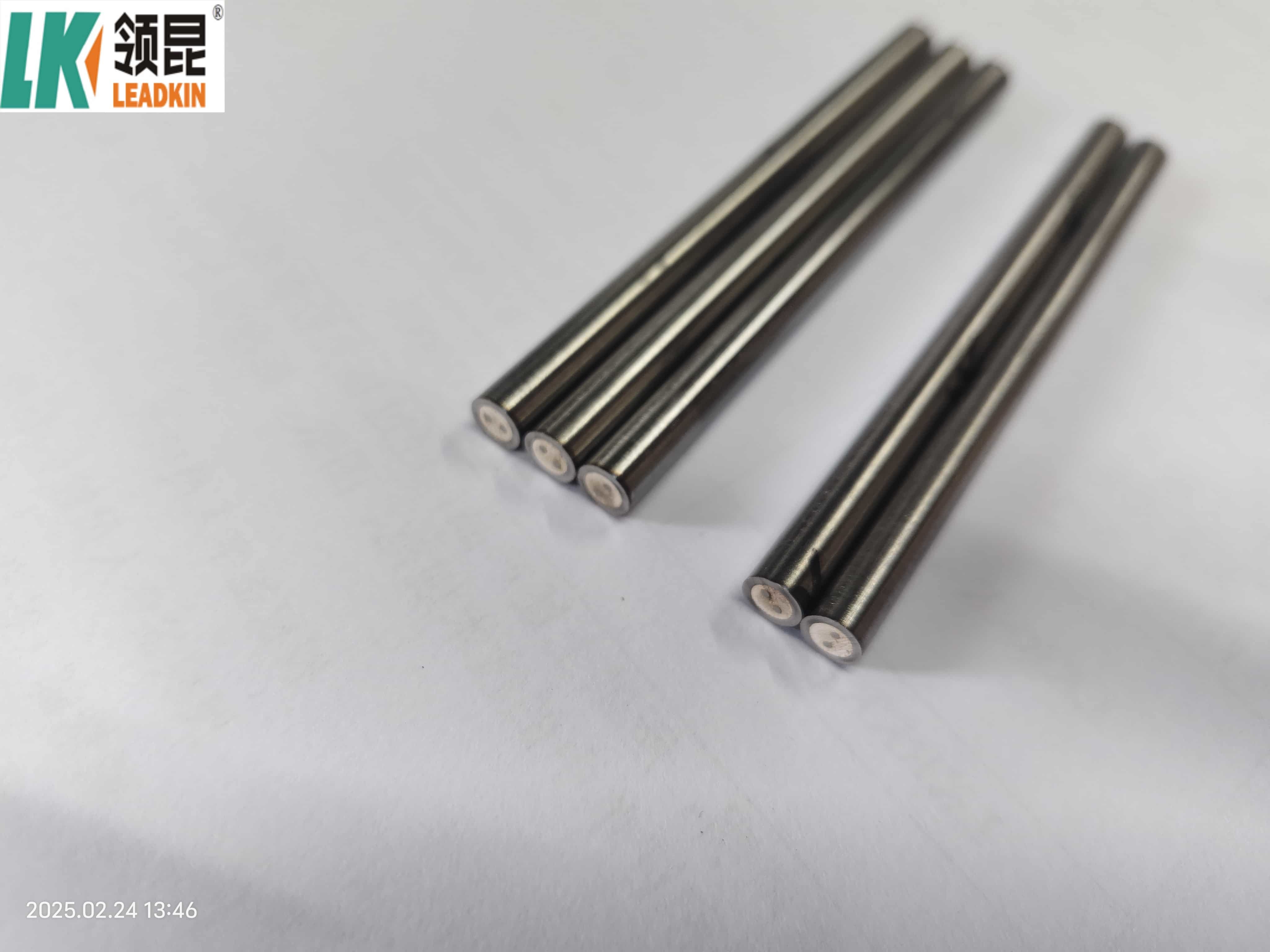

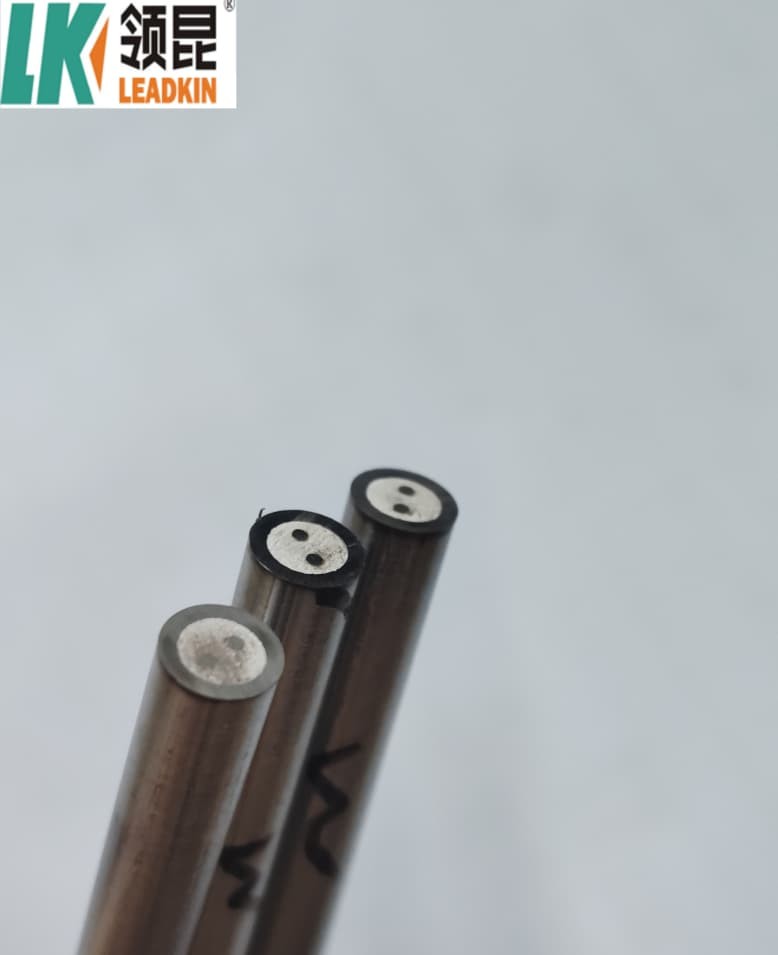

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
