Durable Thermocouple Temperature Probe For High Temperature Measurement

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

Sheath Dia(mm):  φ3.0, φ4.0, φ6.0, φ8.0

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

Types of Thermocouples

Type K

Range: -200 to +1260 °C (-328 to +2300 °F)

Widely used due to its broad temperature range and cost-effectiveness.

Type J:

Range: -200 to +750 °C (-328 to +1382 °F)

Suitable for lower temperature measurements.

Type T:

Range: -200 to +350 °C (-328 to +662 °F)

Good for cryogenic applications.

Type R/S:

Range: 0 to +1600 °C (32 to +2912 °F)

Used in high-temperature environments, often in laboratory settings.

Type B:

Range: 0 to +1800 °C (32 to +3272 °F)

Suitable for high-temperature applications but has a slower response time.

Applications

Industrial Processes: Used in furnaces, kilns, and industrial ovens for process control.

HVAC Systems: Temperature measurement in heating, ventilation, and air conditioning systems.

Automotive: Monitoring engine temperatures, exhaust gas temperatures, and other critical parameters.

Food Processing: Ensuring safe cooking temperatures and food safety.

Aerospace: Monitoring temperatures in engines and other critical components.

Laboratories: Used in experiments and research requiring precise temperature measurements.

Applications :

• Solid waste incinerators
• Sintering powdered metals
• Firing ceramic materials
• Gas or oil fired furnaces
• Fuel fired heat exchangers
• Box furnaces
• Nuclear or hydrocarbon based energy plants
• And many more...

• Sheath cables are used in various applications, including:
• Residential wiring
• Commercial electrical systems
• Industrial machinery
• Power distribution
• Outdoor installations
• Heavy-duty equipment
• Environmental Resistance:
• Many sheath cables are designed to resist moisture, chemicals, UV radiation, and temperature fluctuations, making them suitable for a variety of environments.
• Considerations When Selecting Sheath Cables:
• Application Requirements: Choose the type of sheath cable based on the specific application, considering factors like mechanical protection, environmental exposure, and electrical requirements.
• Compliance with Standards: Ensure that the cable meets relevant electrical codes and safety standards for your region (e.g., NEC in the United States).
• Voltage Rating: Verify that the cable's voltage rating is appropriate for your application.
• Installation Method: Consider how the cable will be installed (e.g., conduit, direct burial, etc.) and choose a sheath type that suits that installation method.
• In summary, sheath cables are essential components in electrical installations, providing protection, insulation, and flexibility for a wide range of applications.

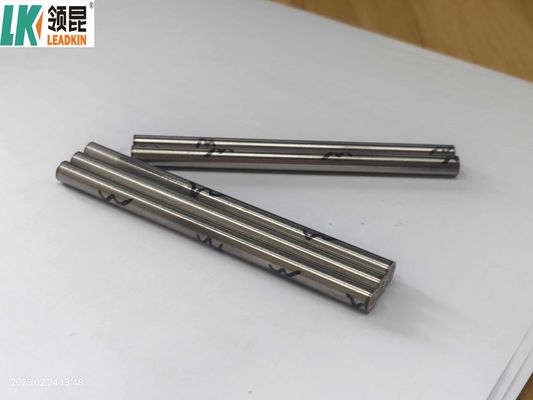

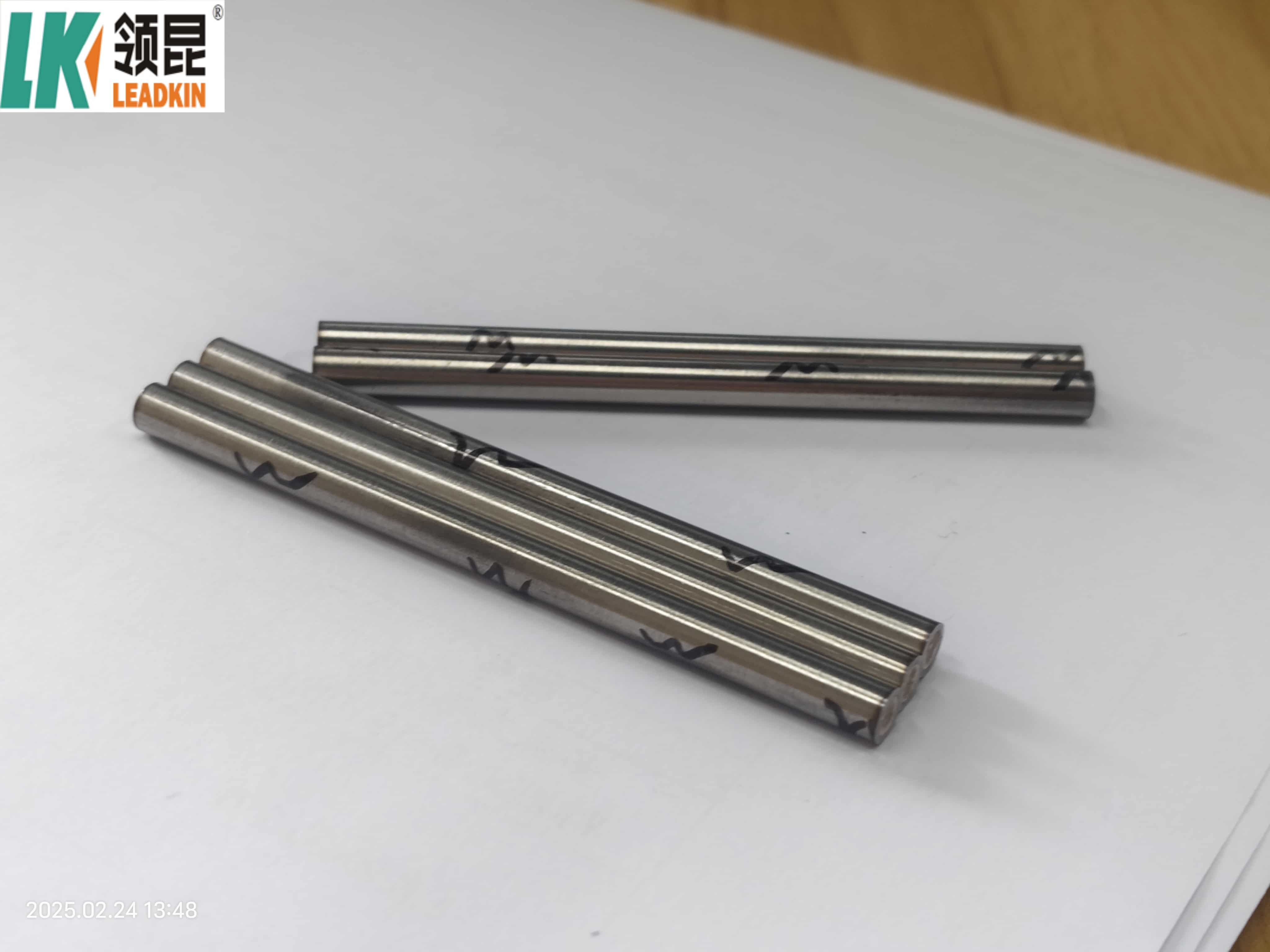

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .

1.What are the advantages of using thermocouples?

Wide temperature range.

Fast response time.

Simple and rugged design.

Relatively inexpensive.

Can be used in various environments, including extreme conditions.

2.What are the disadvantages of thermocouples?

Non-linear output, requiring calibration.

Accuracy may be lower than other temperature sensors (like RTDs).

Requires reference junction compensation for precise measurements.

Susceptible to electromagnetic interference.
